Evolis High Trust® original color ribbons have been designed to produce the very best
image quality with Evolis card printing systems.
The double layer of overlay brings to your printed cards an increased protection against
wear and tear, and thus a better lifespan to your prints.

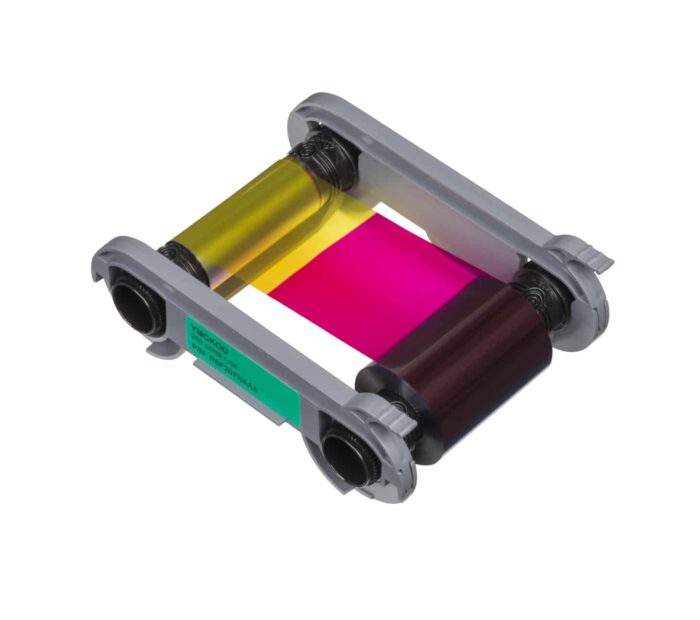

YMCKOO Color Ribbon – 250 prints / roll
$116.00
ADVANTAGES
The double layer of overlay brings to your printed cards an increased protection against wear and tear, without
lamination. The abrasion resistance is 3 times better with the YMCKOO ribbon compared to standard YMCKO
ribbon protection.
The double overlay YMCKOO ribbon also gives you the ability to use one of the overlay layer to easily apply UV
effects for security purpose, and the other overlay layer to fully protect the card.
Tested and validated by Evolis R&D and Quality departments, these consumables bring you printing quality and
reliability.
GENERAL SPECIFICATIONS
• For dye-sublimation and thermal transfer technologies
• For single or dual-sided color printing
• Ribbon in PET with thin layer of specialized coatings
• 6 whole panels – Yellow, Magenta, Cyan, Black, Overlay, Overlay: 98 mm length
• Overlay thickness: 4.0 µm with double layer of Overlay, 2.0µm with single layer of Overlay
• Printing lifespan: up to 5 years
• Compatible with PVC or composite cards
• Printing process: diffusion temperature above 50°C / 122°F
EXTRA DURABILITY WITHOUT LAMINATION
YMCKOO double layer of overlay brings to your printed cards an increased protection against wear and tear, and
thus a better lifespan to your prints.
The abrasion resistance (measured through Taber cycles following the ISO standard ISO CEI 24789) is 3 times
better with the YMCKOO ribbon compared to standard YMCKO ribbon protection:
Bringing extra durability without lamination, YMCKOO ribbon is a cheaper and more convenient solution when
patch protection is not required.
Targeted applications: banking cards with longer life, resident cards, health cards, voter
cards, etc.
MORE SECURITY EASILY WITH UV EFFECT
The YMCKOO ribbon gives you the ability to use one of the overlay layer for UV effect and the other overlay layer to
fully protect the card. You can easily insert UV-light reflective features to add an extra level of security to your cards:
logos, texts, photos. Generic designs are also available in Primacy 2 driver.
RFID SYSTEM
The RFID system allows the automatic ribbon recognition by the printer (improved user friendliness).
SPECIFIC CLEANING ROUTINE
In addition to standard routine printer cleaning required for Primacy 2, we recommend a specific cleaning
maintenance when using YMCKOO ribbon: 1 T-card (P/N: ACL004) along with usal adhesive card (P/N: ACL003)
every 1,000 printed cards.
STORAGE INFORMATION
These ribbons shall be capable of functioning for up to 1 year after purchase if stored in a cool, dry environment
and having remained unopened from the original packaging. Temperature of storage must be between 5-25°C
(41 – 77°F) and at RH between 50-70%. Once opened these ribbons shall have a lifetime of 3 months if stored under
cool, dry conditions. For all these ribbons, avoid dust, direct sunlight, high humidity and high temperatures. Do not
place near solvent or other chemicals.
